A visual social playlist for the car cabin. Passengers AirDrop content to the head unit, where it lands as a Tinder-style card stack to swipe into a shared queue — Unity front end, a Raspberry Pi running a reverse-engineered AirDrop receiver, Spotify under the hood.

Conner Ward built ATRIA, a visual social playlist for the car cabin, for BMW of North America — passengers AirDrop content to the head unit and it lands as a Tinder-style swipeable card stack, with a Unity front end, a Raspberry Pi running a reverse-engineered AirDrop receiver, and Spotify under the hood.

ATRIA replaces the road-trip argument over whose music plays with a shared card stack everyone in the cabin can read and edit: each passenger AirDrops a song to the car, the drop appears as a card to swipe into a shared queue, and Spotify plays the top of the queue. Conner Ward built it in 2021 at BMW North America's EN-54 Experience Design Lab; it is internal work with no public repository.

BMWNA · EN-54 Experience Design Lab · 2021 · internal · no public repo

Every road trip is a small negotiation over whose music plays. ATRIA replaces it with a shared card stack on the head unit: each passenger AirDrops a song (or photo, or webloc) to the car like they would to a friend's phone, it lands as a draggable card in a “Spotlight,” and a right-swipe queues it. Spotify plays the top of the queue — the cabin's music becomes one visible playlist everyone can edit.

Stack

Raspberry Pi (in-cabin server): Announces itself on the local network as an AirDrop device named MyCar — it just appears in every cabin iPhone's AirDrop sheet. No app, no pairing, no QR. Runs the Python services that receive drops and bridge them to Unity.
OWL · OpenDrop · nexmon: The AirDrop stack on Linux. OWL (TU Darmstadt) is a reverse-engineered AWDL daemon; OpenDrop speaks the AirDrop application layer on top; nexmon patches the Pi's BCM43455 card into the monitor mode AWDL needs. Cold-start: mon0 up, owl -i mon0 -N -D, python3 main.py.
airdrop_server.py: Modified OpenDrop receiver. The deviation from stock: it simultaneously accepts drops and scans for nearby AirDrop users (feeding a “people in range” indicator). Drops land in a watched folder.
watchdog_handler.py: watchdog file watcher. New .jpg/.png/.webloc/.url → resolve to a URL → emit JSON over the TCP bridge ({msgtype:"spotify", action:"add", url:…}).
tcp_server.py · schema.py: JSON socket on port 8085. Fixed schema: msgtype, action, user, url, misc. Unity opens the socket on boot; Python blocks until it connects.
Unity (head-unit UI): The card stack as a real-time scene. Controller owns Spotlight / Queue / PlayingNow and listens to the TCP client. DraggableSpotlightCard / DraggableContent handle the gestures — swipe past a radius, tap to preview, long-press to scrub. QueueHorizontalLayoutGroup extends HorizontalLayoutGroup with an S-curve so cards arc into place. SpotifyService (Spotify4Unity) plays; AtriaSpotifyClient fetches album art at a separate OAuth scope.
Spotify Web API: Unity authenticates on boot (OAuth via Spotify4Unity) and drives transport on the connected speaker. Album art is fetched by URL as each card is added.

Process

Why AirDrop. Every other “share with the car” flow has a friction step that kills it — install the app, pair Bluetooth, scan a QR, log in. AirDrop is the one transfer every iPhone owner already uses without thinking; if the car's in the sheet, contributing a track is one tap. The project is built around that.

OWL was the unlock. AirDrop rides on Apple Wireless Direct Link, a proprietary Wi-Fi-direct variant. Until OWL reverse-engineered AWDL, no non-Apple device could even be discovered as an AirDrop target. With OWL and a nexmon-patched kernel in monitor mode, the Pi sits in every cabin iPhone's sheet as MyCar — same handshake, same UX, Linux underneath instead of macOS.

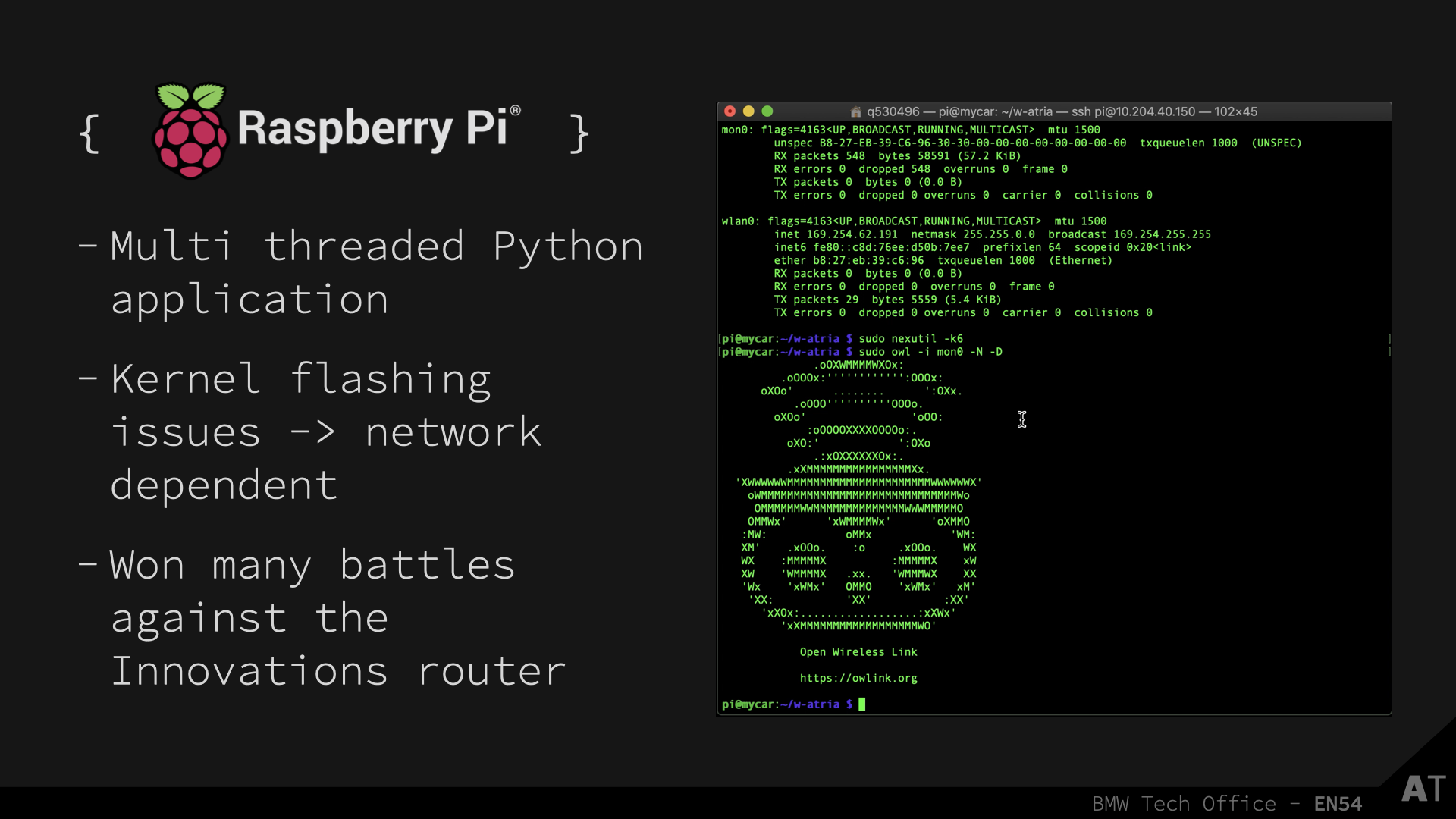

From the internal EN-54 keynote — the Pi mid-cold-start: mon0 in monitor mode, the OWL daemon up with its ASCII-owl banner, and the battle scars (kernel flashing, the lab's Innovations router) logged alongside.

Cards, not lists. A queue is functional; a card stack is social. Each contribution becomes a physical-feeling object anyone in the cabin can swipe, reorder, or skip. The Tinder gesture does double duty — it queues the track and it's a public act every passenger sees — turning the queue into a shared editing surface instead of a private append-only log.

The data flow, end-to-end. AirDrop a Spotify URL → AWDL handshake to MyCar → OpenDrop writes a .webloc → watchdog fires → URL packaged into the schema, sent over the TCP socket → Controller spawns a DraggableSpotlightCard and fetches album art, animating it into the Spotlight. Swipe it into the Queue; the S-curve slots it in; SpotifyService picks up the next card when the current one ends.

What this is really about. Most car-music UX optimizes the solo driver. ATRIA optimizes the four-passenger case where the music is the social object of the trip — the whole stack (AWDL on Linux, threaded Python, TCP bridge, Unity gestures, Spotify OAuth) in service of replacing an argument with a shared editing surface: frictionless to contribute to (AirDrop, no app), explicit to everyone watching (a card the cabin reacts to). Pi cost ~$120; AUX-cable peace, priceless.

Architecture

iPhone drop a song

AWDL→AirDrop

Raspberry Pipython

airdrop_server.pyreceive + scan

watchdog_handler.pywatch → URL

tcp_server.pyserve JSON

OWL · OpenDrop · nexmon

JSON→:8085

Unityhead unit

ControllerSpotlight · Queue

SpotlightCardswipe → queue

SpotifyServiceplayback + art

Spotify4Unity · OAuth

OAuth⇄

Spotify Web API

End-to-end — the Pi owns the AirDrop receiver and file-watch; Unity owns the card UI and playback; they meet at a JSON socket on :8085.

Sketches → Prototype

Wireframe — early Adobe XD prototype of the cabin UI, sketched first on paper (behind): spotlight area, queue, drop indicator.

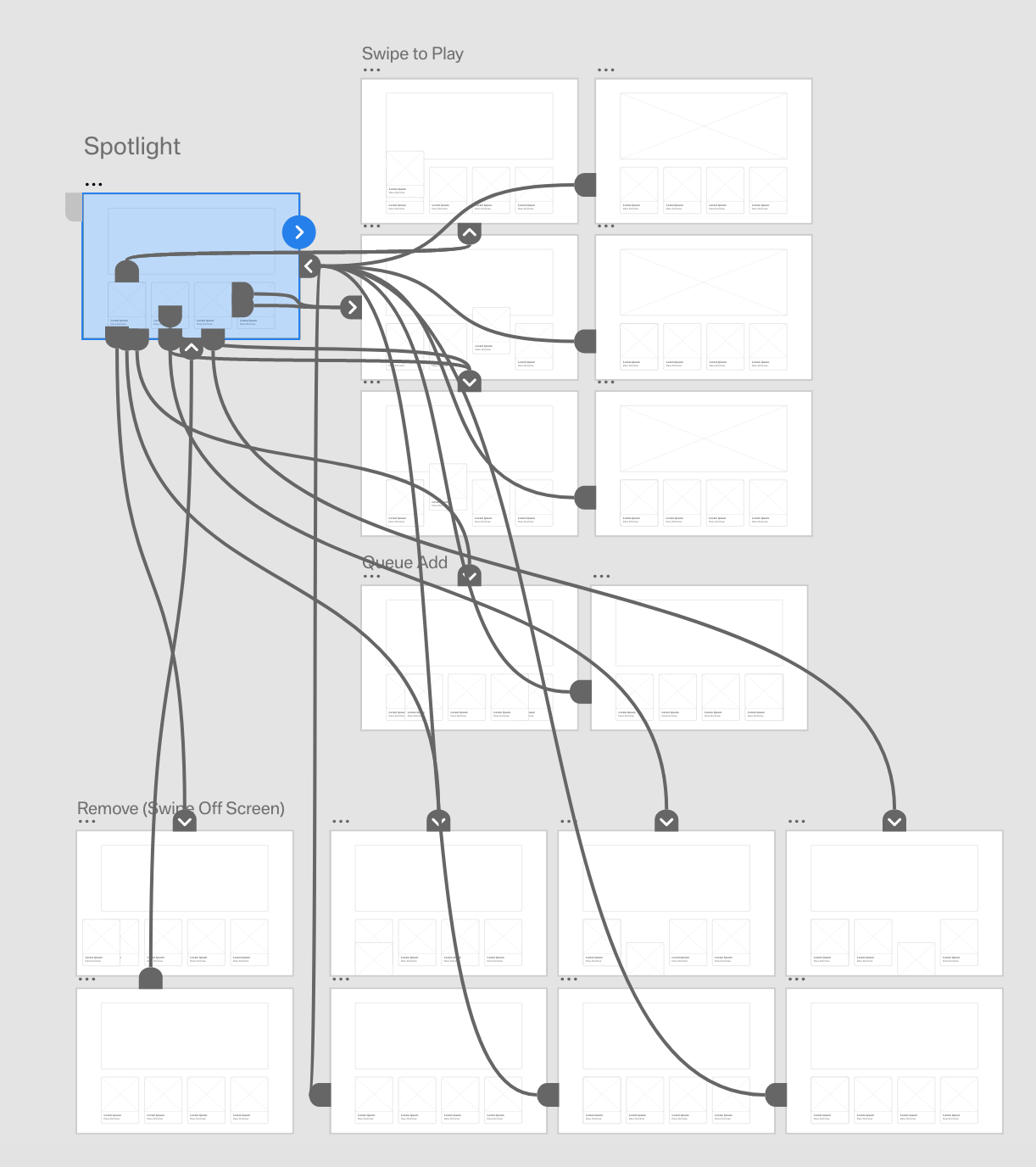

Adobe XD prototype zoomed-in view — labeled Spotlight zone, Swipe to Play, and Remove (drag off screen) regions with their respective screen targets. — Labeled zones — Spotlight, Swipe to Play, Remove.

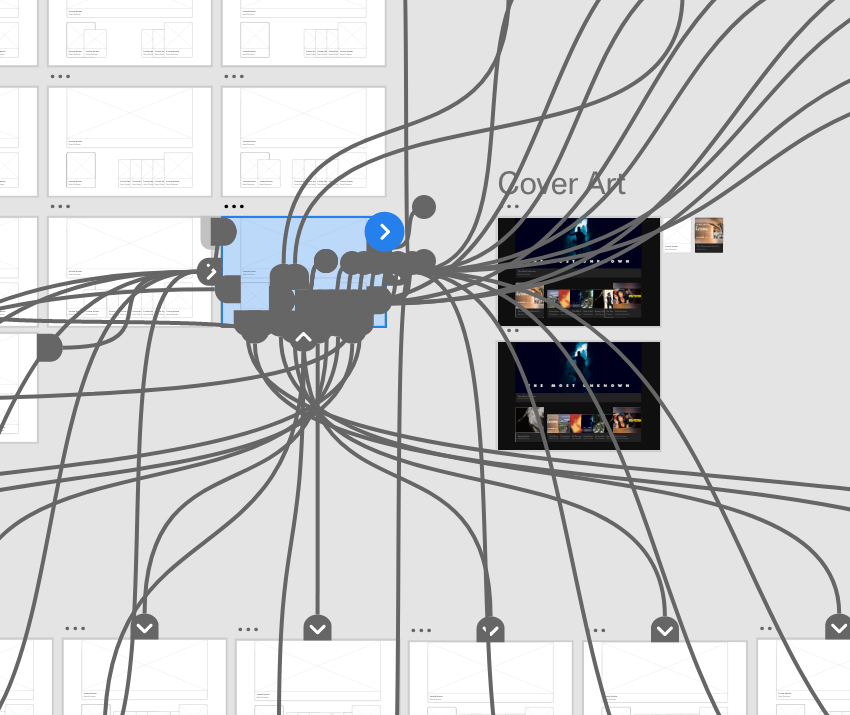

Adobe XD prototype, zoomed into the centre — the Spotlight start node, Cover Art cards, and the wires fanning out to every screen. — Connections — the Spotlight hub wiring out.

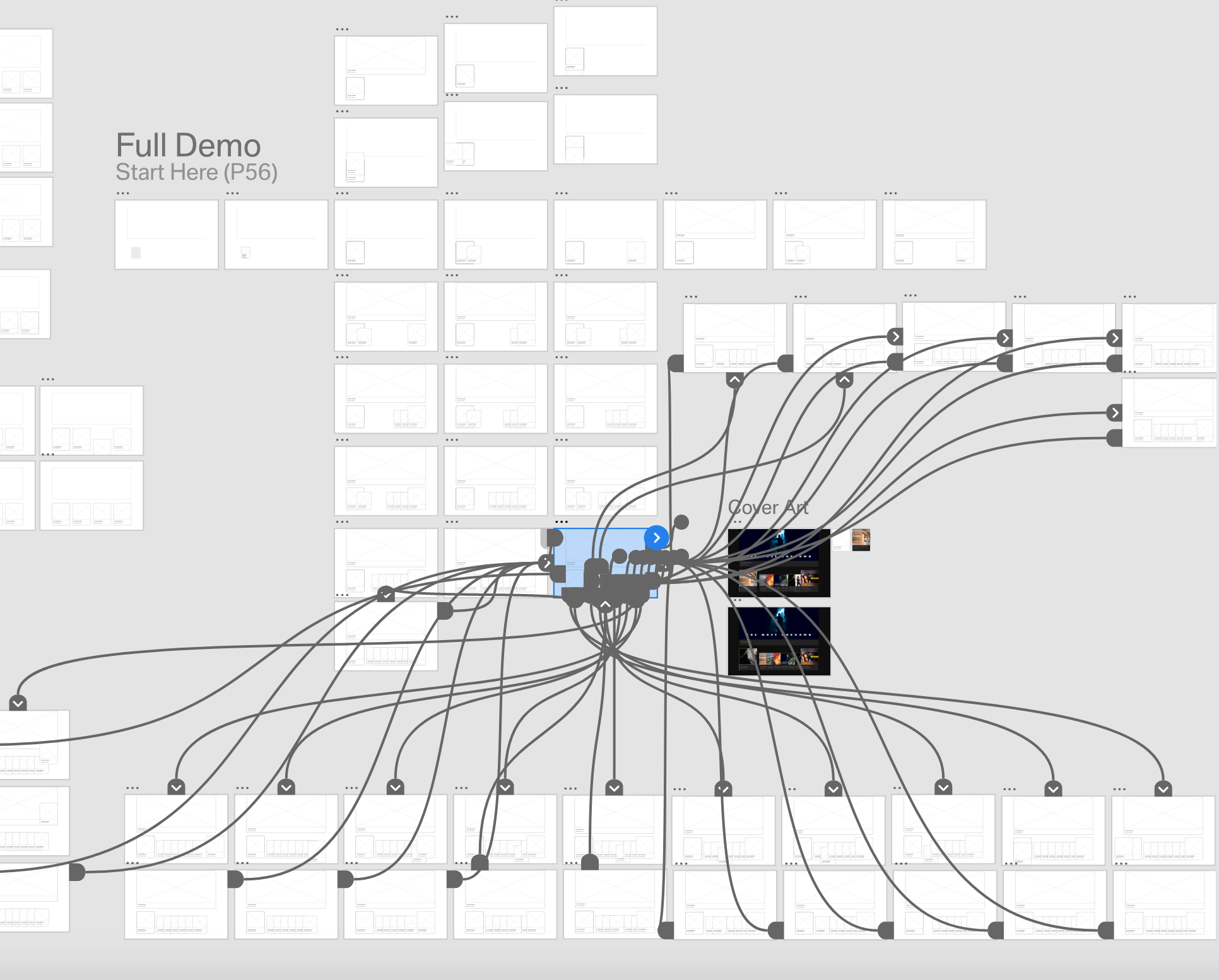

Adobe XD prototype overview — the full screen-to-screen click graph for the cabin UI. — Full graph — every screen linked out.
